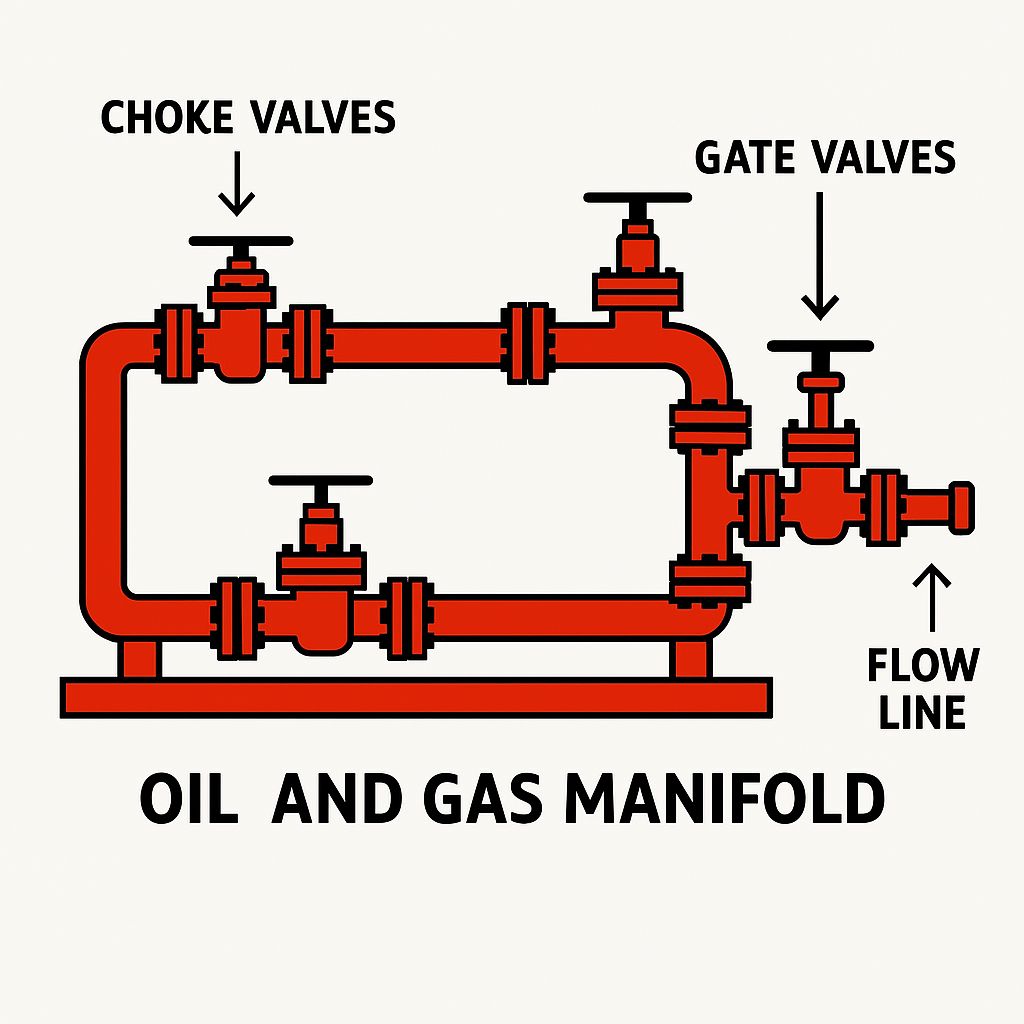

Manifold Oil and Gas - Align MFG parts manufacturing
Overview

Manifold Component Manufacturing

Manifolds are at the heart of pressure control systems in oil and gas operations — directing, isolating, and managing fluid flow across drilling, stimulation, and well testing applications. At Align Manufacturing, we support leading OEMs and equipment integrators with high-precision manifold components built for performance in extreme conditions.

Our team machines and fabricates tees, crosses, flanges, valve bodies, and custom subassemblies to exacting tolerances using oilfield-grade materials. Produced in trusted manufacturing centers across India, Vietnam, and Thailand, our parts meet U.S. expectations for quality, documentation, and material compliance.

Key Features

Designed for Real-World Oilfield Demands

We build every manifold component with upstream realities in mind: high-pressure, high-cycle, sand-laden, and corrosive environments. Align’s production model emphasizes:

  • U.S. engineering standards applied at our Asian production sites

  • On-site QA teams for dimensional and visual inspection

  • Traceable material sourcing with full MTRs and compliance packages

  • Predictable delivery timelines with built-in logistics coordination

From one-off flow loop components to high-volume manifold part production, we provide repeatable accuracy and end-to-end visibility.

Applications We Support

  • Frac Manifolds (Zipper Systems, Missile Trailers)

  • Choke and Kill Manifolds (Well Control)

  • Test Manifolds (Surface Well Testing)

  • Cementing and Coil Tubing Manifolds

  • Flowback and Production Systems

Common Components

Manifold Components We Commonly Manufacture



  • Inlet & outlet headers (machined or fabricated)

  • Tees, crosses, and elbows (API 6A-rated)

  • Valve bodies for plug or gate valves

  • Spacer spools and adapter blocks

  • Threaded and flanged connectors

  • Union subassemblies and alignment guides

  • Flow iron replacement parts (for frac/kill manifolds)

Specifications

Technical Specifications

Capability Details
Pressure Ratings Up to 15,000 psi (API 6A & 16C systems)
Part Dimensions Up to 12" OD and 300 lbs/component
Material Options AISI 4130, 410SS, Inconel 625, Duplex, Clad Steel
Machining Tolerances Down to ±0.0005" for sealing surfaces
Surface Finishing Nitrided, cladded, Xylan/PTFE prepped
Compliance & Docs API 6A, NACE MR0175, ISO 9001, MTRs provided

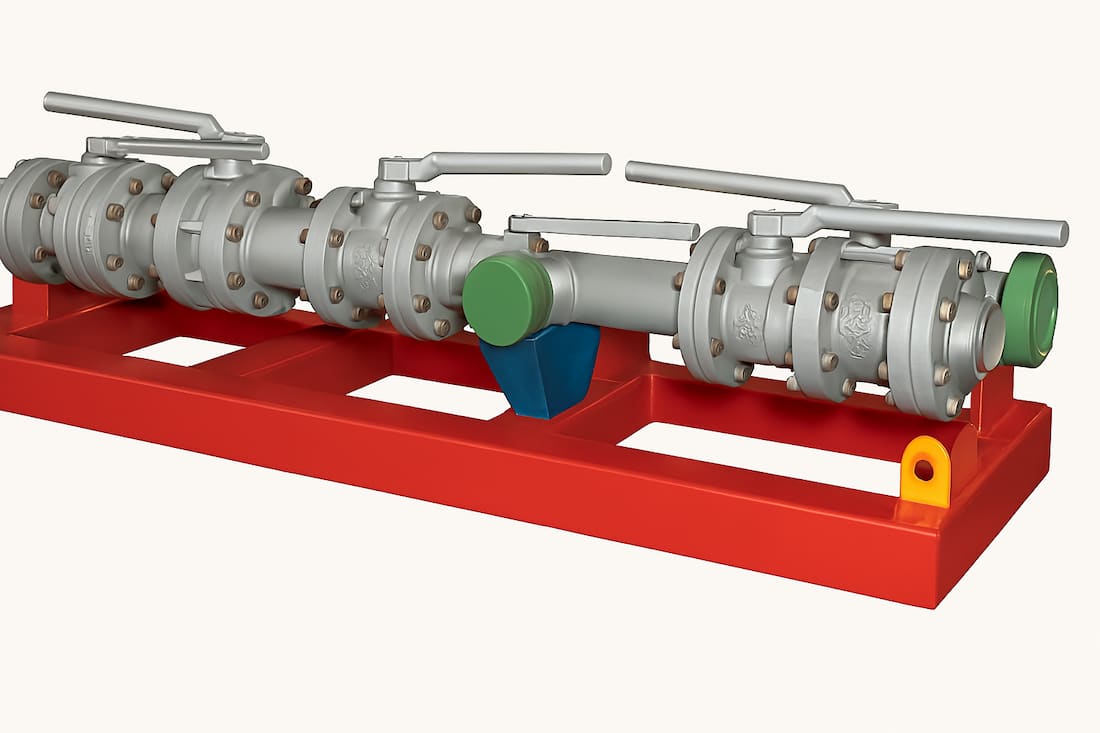

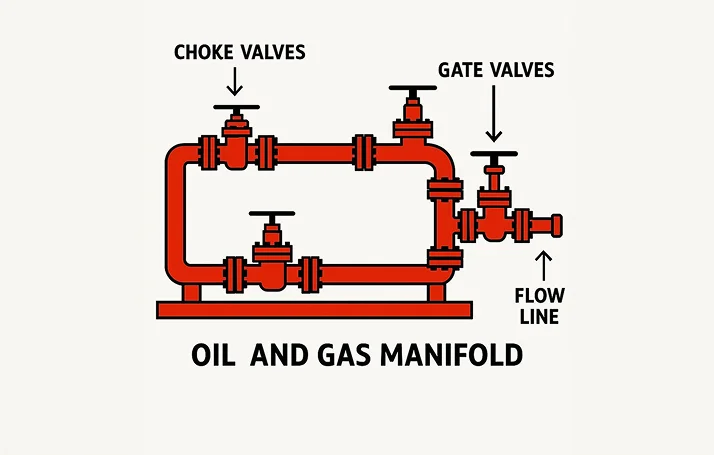

Oil and Gas Manifold Align MFG
Align MFG Manifolds

Why System Builders and OEMs Choose Align

We help hardware innovators and established OEMs get ahead of offshore delays by offering a manufacturing partnership that’s both cost-efficient and professionally managed.

  • Reduced supply chain friction with Asia-based production + Western-style QA

  • Fast-turn quoting and prototyping

  • Tight batch-to-batch tolerance control

  • Expertise in reverse engineering legacy flow components
