Utilizing Brass Thermal Conductivity in Heat Exchanger Manufacturing
Heat exchangers form the thermal backbone of HVAC systems, marine cooling, power generation, and industrial process equipment. The material selection for heat exchanger tubes and components directly impacts thermal efficiency, corrosion resistance, service life, and manufacturing economics. Brass alloys—particularly those in the copper-zinc family—offer compelling combinations of thermal performance, fabricability, and cost-effectiveness that have made them staple materials in heat transfer applications for over a century.
Understanding how brass thermal conductivity varies with alloy composition, temperature, and manufacturing processes enables engineers to optimize heat exchanger designs for specific operating environments. This guide examines brass thermal properties, alloy selection criteria, and manufacturing considerations for heat exchanger applications.
Thermal Conductivity Fundamentals
Thermal conductivity measures a material's ability to conduct heat, quantified in watts per meter-kelvin (W/m·K). Higher values indicate more efficient heat transfer. Thermal conductivity depends on atomic structure, electron mobility, temperature, and material purity.
Why Metals Conduct Heat Effectively
Metals conduct heat through two primary mechanisms:
Electron Transport: Free electrons in metallic bonds carry thermal energy efficiently. Pure copper's exceptionally high thermal conductivity (398 W/m·K at room temperature) derives from its free electron structure[^1^].
Lattice Vibrations (Phonons): Atomic vibrations propagate through the crystalline structure, contributing to thermal transport. This mechanism dominates in non-metallic materials but contributes less than electron transport in metals.
Alloying elements disrupt regular crystalline structures and scatter electrons, generally reducing thermal conductivity compared to pure metals. However, alloying may be necessary to achieve strength, corrosion resistance, or other properties essential for service performance.

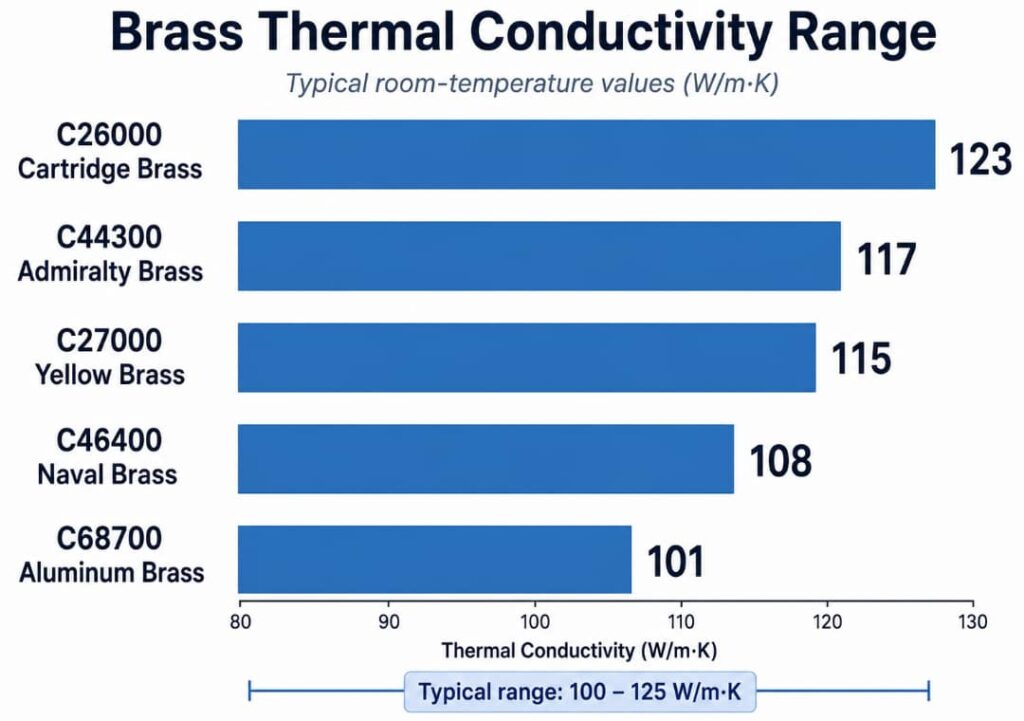

Brass Thermal Conductivity Range
Commercial brass alloys exhibit thermal conductivities ranging from approximately 100-150 W/m·K—substantially below pure copper but significantly above aluminum (205 W/m·K) and far exceeding stainless steel (15-25 W/m·K). This positions brass as a practical compromise between thermal performance and other engineering properties.
| Alloy | UNS | Thermal Conductivity (W/m·K) | Notes |
|---|---|---|---|
| Cartridge Brass | C26000 | 123 | Standard brass; good balance |
| Yellow Brass | C27000 | 115 | Similar to C26000 |
| Admiralty Brass | C44300 | 117 | Arsenic-inhibited for seawater |
| Naval Brass | C46400 | 108 | Higher strength; lower conductivity |
| Aluminum Brass | C68700 | 101 | Aluminum addition reduces conductivity |
Thermal conductivity decreases with increasing zinc content and additional alloying elements. Pure copper's 398 W/m·K drops to approximately 115-125 W/m·K for common brasses with 30-40% zinc content.
Temperature Dependence
Thermal conductivity varies with temperature. For brass alloys commonly used in heat exchangers:
- At 20°C (68°F): 100-125 W/m·K
- At 100°C (212°F): 115-140 W/m·K
- At 200°C (392°F): 125-150 W/m·K
This positive temperature coefficient benefits heat exchanger performance—thermal conductivity increases where heat transfer is most intensive. However, designers must consider operating temperature ranges when calculating thermal performance[^2^].

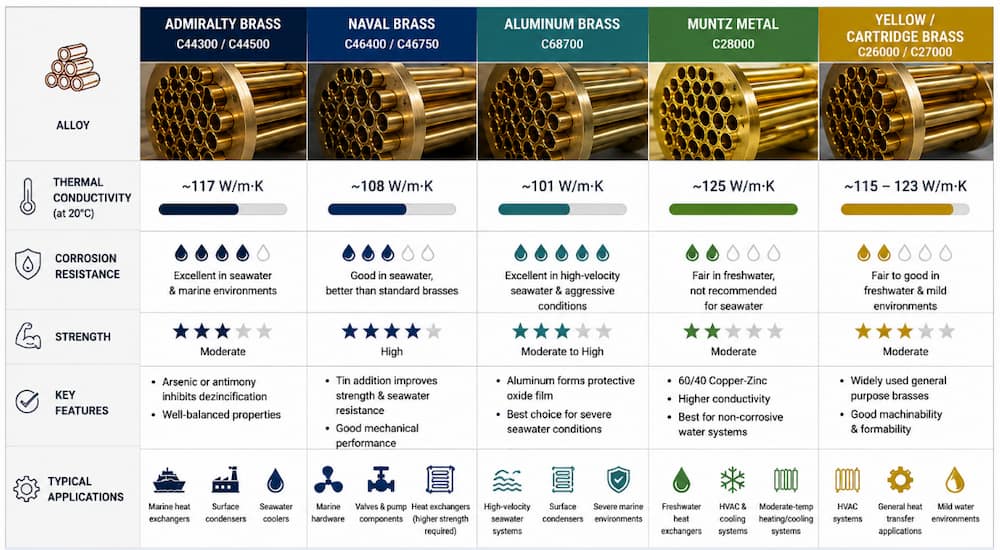

Brass Alloy Comparison for Heat Exchangers
Different brass alloys serve distinct heat exchanger applications based on thermal requirements, corrosion environment, and mechanical property needs.
Admiralty Brass (C44300, C44500)
Admiralty brass contains 70-73% copper, 26-29% zinc, with small additions of tin and arsenic or antimony. The arsenic addition (0.02-0.10%) inhibits dezincification corrosion in seawater and other aggressive environments.
Thermal Properties:
- Thermal conductivity: ~117 W/m·K at 20°C
- Moderate thermal performance with excellent corrosion resistance
- Suitable for moderate-temperature applications
Applications:
- Surface condensers for power plants
- Distiller units in marine applications
- Heat exchangers handling seawater or brackish water
- Oil coolers and evaporators
Admiralty brass represents the workhorse alloy for marine and coastal heat exchanger applications where seawater corrosion dominates material selection.
Naval Brass (C46400, C46750)
Naval brass contains 59-62% copper, 0.5-1.0% tin, with the balance zinc. Tin addition improves strength and seawater corrosion resistance compared to standard brasses.
Thermal Properties:
- Thermal conductivity: ~108 W/m·K at 20°C
- Lower thermal conductivity due to higher tin content
- Compensated by improved mechanical strength
Applications:
- Propeller shafts and marine hardware
- Valve stems and pump components
- Heat exchanger components requiring higher strength
- Applications with moderate thermal requirements and mechanical loading
The strength advantage of naval brass permits thinner wall designs that partially compensate for reduced thermal conductivity in some applications.
Aluminum Brass (C68700)
Aluminum brass contains 76-79% copper, 1.8-2.5% aluminum, with the balance zinc. Aluminum addition creates a protective oxide film enhancing corrosion resistance in high-velocity seawater.
Thermal Properties:
- Thermal conductivity: ~101 W/m·K at 20°C
- Lower thermal conductivity than admiralty brass
- Best corrosion resistance for severe environments
Applications:
- High-velocity seawater heat exchangers
- Surface condensers with aggressive water conditions
- Applications where corrosion would limit service life of other brasses
Despite lower thermal conductivity, aluminum brass may deliver better life-cycle performance in severely corrosive environments by avoiding premature tube failure[^3^].
Muntz Metal (C28000)
Muntz metal contains 59-62% copper with the balance zinc—essentially a 60/40 brass without additional alloying elements.
Thermal Properties:
- Thermal conductivity: ~125 W/m·K at 20°C
- Higher thermal conductivity than admiralty or aluminum brass
- Lower corrosion resistance; limited to freshwater applications
Applications:
- Freshwater heat exchangers
- Moderate-temperature heating and cooling systems
- Applications where thermal performance outweighs corrosion concerns
Heat Exchanger Design Considerations
Effective heat exchanger design balances thermal performance, pressure drop, structural integrity, and manufacturing feasibility.
Tube Design Parameters
Wall Thickness:
Thinner walls improve thermal performance by reducing conductive resistance but must maintain structural integrity against pressure, erosion, and corrosion. Typical heat exchanger tube wall thicknesses range from 0.5-2.0 mm depending on diameter and service conditions.
Thermal resistance through the tube wall:
R_wall = ln(r_outer / r_inner) / (2 × π × k × L)
Where k is thermal conductivity and L is tube length. Higher conductivity (k) reduces thermal resistance, enabling improved heat transfer or reduced surface area requirements.
Tube Diameter:
Smaller diameters provide higher surface area per unit volume and increased heat transfer coefficients but increase pressure drop and fouling susceptibility. Common brass heat exchanger tubes range from 6-50 mm diameter.
Surface Enhancements:
Internal or external surface enhancements (grooves, fins, turbulators) increase heat transfer area and promote turbulence. Manufacturing processes must accommodate these features while maintaining material integrity.

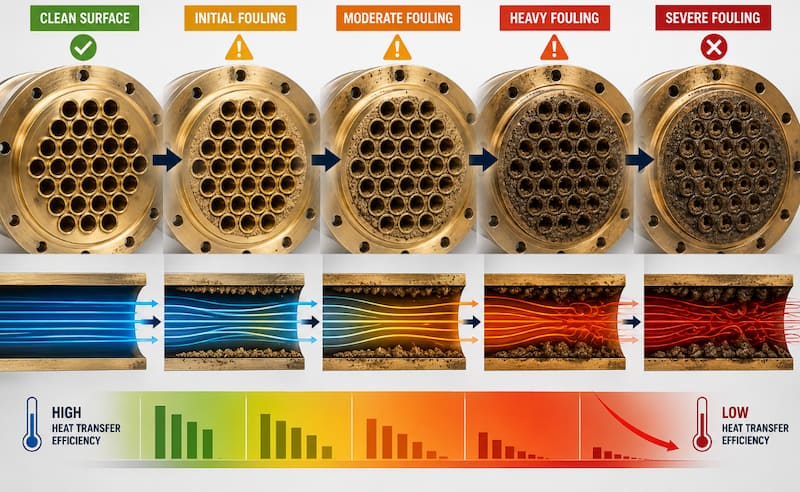

Fouling Considerations
Fouling—deposition of materials on heat transfer surfaces—degrades performance over time. Brass's smooth surface finish and corrosion resistance reduce certain fouling mechanisms:
- Particulate fouling: Smooth brass surfaces shed particles more readily than rougher materials
- Corrosion fouling: Appropriate brass selection minimizes corrosion product accumulation
- Biological fouling: Copper content provides natural biofouling resistance
Biofouling resistance is particularly valuable in marine and coastal applications where biological growth would otherwise require frequent cleaning or chemical treatment.
Thermal Design Calculations
Heat exchanger thermal design uses overall heat transfer coefficients (U-values) combining convective resistances and wall conduction:
1/U = 1/h_inner + R_wall + 1/h_outer + R_fouling
Where h represents convective heat transfer coefficients and R_fouling accounts for fouling layer resistance. Brass's favorable thermal conductivity minimizes R_wall, enabling higher U-values and more compact designs.
For brass tubes in typical water-to-water or water-to-air applications, U-values range from 500-1,500 W/m²·K depending on flow conditions and fouling state[^4^].

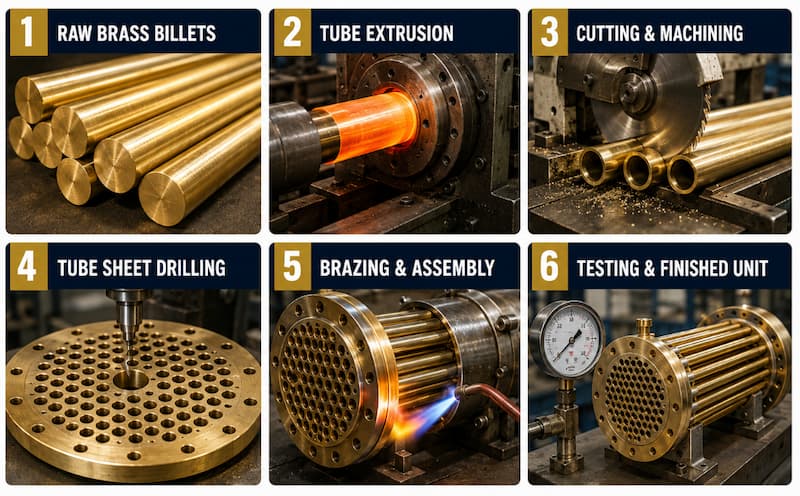

Manufacturing Process Considerations
Brass heat exchanger manufacturing encompasses tube production, component fabrication, assembly, and quality verification.
Tube Manufacturing
Seamless Tube Extrusion:
High-quality heat exchanger tubes typically use seamless extrusion processes. Brass billets are heated to 600-750°C and extruded through dies forming hollow tubes. Subsequent cold drawing achieves precise dimensional tolerances and surface finishes.
Thermal Conductivity Preservation:
Manufacturing processes must preserve thermal conductivity through:
- Controlled annealing to relieve work hardening without excessive grain growth
- Minimizing residual stresses that could affect thermal performance
- Maintaining alloy chemistry within specification limits
Quality Requirements:
Heat exchanger tubes require tight dimensional tolerances (typically ±0.05 mm on diameter) and defect-free surfaces. Eddy current and ultrasonic testing verify integrity.
Header and Component Fabrication
Heat exchanger headers, baffles, and support plates typically fabricate from brass plate or castings.
Stamping and Forming:
Brass sheet stamps readily into header shapes, tube sheets, and baffles. Progressive dies efficiently produce high volumes of components with consistent quality. Forming operations must respect brass ductility limits to avoid cracking.
Machining:
CNC machining produces complex features in headers and connections. Free-machining brass grades facilitate drilling, tapping, and surface machining. Chip management and tool selection optimize for brass's thermal conductivity and tendency to gall.
Joining Methods:
Brazing predominates for heat exchanger assembly, creating metallurgical bonds with excellent thermal and mechanical properties. Silver-based brazing alloys (BAg series) provide high-strength joints with good corrosion resistance. Proper flux selection and temperature control ensure quality brazed joints.
Corrosion Protection
Heat exchanger longevity depends on corrosion management throughout manufacturing and service.
Surface Treatments:
- Passivation: Chemical treatments enhance protective oxide formation
- Coatings: Organic or metallic coatings for severe environments
- Cathodic protection: Sacrificial anodes for critical applications
Manufacturing Cleanliness:
Residual lubricants, fluxes, or contaminants accelerate corrosion initiation. Thorough cleaning and appropriate surface treatments before shipment protect during storage and initial service.

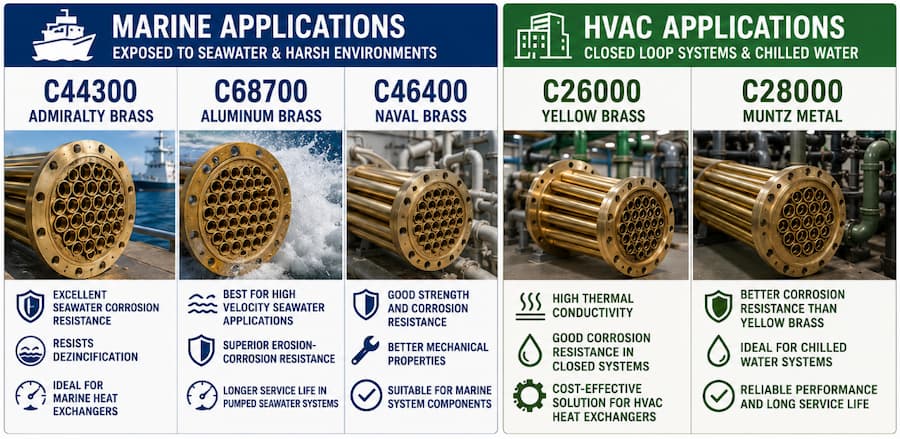

Marine vs. HVAC Application Guidelines
Heat exchanger service environments dictate appropriate brass alloy selection and design practices.
Marine Applications
Marine heat exchangers face severe corrosion challenges from seawater exposure.
Recommended Alloys:
- Seawater cooling: Admiralty brass (C44300) or aluminum brass (C68700)
- High-velocity seawater: Aluminum brass preferred for velocity > 2.5 m/s
- Seawater with sediment: Admiralty brass with enhanced wall thickness
Design Considerations:
- Maintain water velocity between 1-3 m/s to minimize erosion-corrosion
- Avoid crevices where differential aeration corrosion initiates
- Design for inspection and tube replacement access
- Specify corrosion allowance in wall thickness calculations
Performance Expectations:
Properly designed and maintained brass marine heat exchangers typically achieve 15-25 year service lives, with tube replacement extending total system life significantly[^5^].
HVAC Applications
Heating, ventilation, and air conditioning heat exchangers operate in freshwater or closed-loop glycol systems with lower corrosion severity.
Recommended Alloys:
- Freshwater heating/cooling: C26000, C27000, or C28000
- Chilled water systems: Standard brasses with proper water treatment
- Steam heating: Admiralty brass for condensing applications
Design Considerations:
- Design for water treatment compatibility (pH, oxygen scavengers)
- Accommodate thermal expansion in long tube bundles
- Provide venting for non-condensable gases in steam systems
- Consider freeze protection for exposed installations
Performance Expectations:
HVAC brass heat exchangers commonly achieve 20-30+ year service lives with proper water chemistry control. Lower corrosion rates compared to marine applications enable use of higher-conductivity standard brasses.

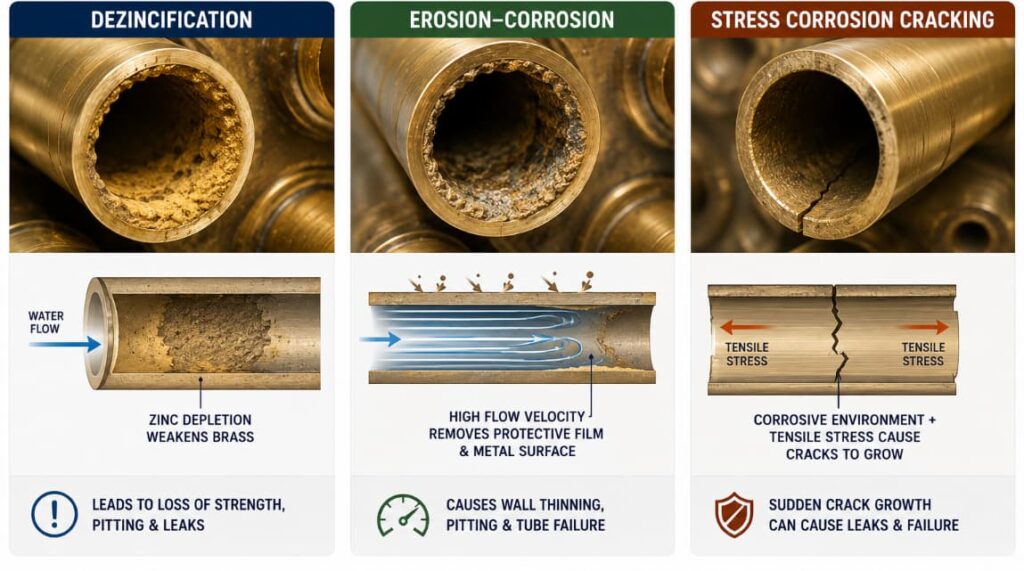

Corrosion Mechanisms and Mitigation
Understanding corrosion helps prevent premature heat exchanger failure.
Dezincification
Dezincification selectively removes zinc from brass, leaving porous copper with severely degraded mechanical properties. This form of corrosion particularly attacks brass in stagnant seawater or mildly acidic conditions.
Prevention:
- Specify inhibited admiralty brass (arsenic or antimony additions)
- Maintain water velocity to avoid stagnant conditions
- Control pH within recommended ranges
- Use cathodic protection for critical applications
Erosion-Corrosion
Combined mechanical erosion and electrochemical corrosion attack brass in high-velocity flows, particularly where turbulence or particulate loading occurs.
Prevention:
- Limit water velocity to alloy-specific maximums
- Design smooth flow paths avoiding abrupt direction changes
- Filter particulates from cooling water
- Select aluminum brass for highest-velocity applications
Stress Corrosion Cracking
Ammonia and certain sulfur compounds induce stress corrosion cracking in brass under tensile stress.
Prevention:
- Avoid exposure to ammonia-bearing atmospheres
- Stress-relieve components after fabrication
- Select alternative materials if ammonia exposure unavoidable
Thermal Performance Optimization
Engineers can optimize heat exchanger designs for brass thermal properties.
Surface Area Maximization
Higher brass thermal conductivity enables design trade-offs:
- Compact designs: Smaller heat exchangers achieving same duty
- Extended temperature approaches: Closer approach temperatures possible
- Reduced tube count: Achieve performance with fewer tubes
Enhanced Surfaces
Surface enhancements compensate for conductivity limitations:
- Internally grooved tubes: Increase surface area and turbulence
- Corrugated tubes: Promote mixing without external fins
- Twisted tube inserts: Generate secondary flow patterns
Manufacturing must balance enhancement benefits against production complexity and cost.
Fouling Management
Copper's biofouling resistance provides operational advantages:
- Reduced cleaning frequency compared to steel or aluminum
- Lower chemical treatment requirements
- Maintained performance over extended operating periods
Designers can specify slightly conservative fouling factors knowing brass's resistance to certain fouling mechanisms.
Frequently Asked Questions
What brass alloy offers the best thermal conductivity for heat exchangers?
Standard brass alloys C26000 (cartridge brass) and C28000 (Muntz metal) offer the highest thermal conductivity (~120-125 W/m·K) among common heat exchanger brasses. However, these alloys lack the corrosion resistance needed for seawater applications. For marine service, admiralty brass (C44300, ~117 W/m·K) provides the best combination of thermal performance and corrosion resistance. Aluminum brass (C68700) offers superior corrosion resistance but lower conductivity (~101 W/m·K).
How does brass thermal conductivity compare to copper and aluminum?
Pure copper: ~398 W/m·K (highest, but softer and more expensive)
Brass alloys: ~100-125 W/m·K (moderate, good balance of properties)
Aluminum: ~205 W/m·K (higher than brass, but lower corrosion resistance in many waters)
Stainless steel: ~15-25 W/m·K (much lower, but highest strength)
Brass occupies the practical middle ground—better corrosion resistance than aluminum with significantly better conductivity than stainless steel.
Why does thermal conductivity increase with temperature for brass?
The positive temperature coefficient of thermal conductivity in brass results from electron-phonon interaction physics. As temperature increases, lattice vibrations (phonons) that scatter electrons become less effective at impeding electron transport. This effect dominates the minor negative contribution from increased electron-phonon scattering at higher temperatures. The net result benefits heat exchanger performance where higher conductivity at operating temperatures improves heat transfer.
What causes brass heat exchanger tubes to fail prematurely?
Common failure modes include:
- Dezincification in seawater or aggressive waters without proper alloy selection
- Erosion-corrosion from excessive water velocity or particulate loading
- Stress corrosion cracking from ammonia exposure or manufacturing residual stresses
- Pitting corrosion from stagnant conditions or improper water chemistry
- Fatigue from thermal cycling or vibration
Proper alloy selection, design for appropriate velocities, water treatment, and maintenance prevent most premature failures.
How do I select between admiralty brass and aluminum brass for marine heat exchangers?
Select Admiralty Brass (C44300) when:
- Water velocity is moderate (< 2.5 m/s)
- Seawater is relatively clean (low sediment)
- Cost optimization is important
- Service history supports satisfactory performance
Select Aluminum Brass (C68700) when:
- Water velocity is high (> 2.5 m/s)
- Sediment or abrasive particles present
- Maximum service life is critical
- Severe corrosion conditions exist
The 15% thermal conductivity reduction of aluminum brass is often justified by extended service life in severe environments.
Can brass heat exchangers handle steam applications?
Yes, brass heat exchangers commonly serve steam heating applications. Admiralty brass works well for steam condensing in surface condensers and heating applications. Design considerations include:
- Adequate wall thickness for pressure containment
- Proper condensate drainage to prevent water hammer
- Non-condensable gas venting
- Material compatibility with condensate chemistry
Steam-side corrosion is typically minimal with proper water chemistry control.
What water chemistry conditions favor brass heat exchangers?
Brass performs well in:
- pH 7.0-9.0: Neutral to mildly alkaline conditions
- Low ammonia: Avoid ammonia-bearing compounds
- Controlled chlorides: Moderate chloride levels acceptable with proper alloy
- Aerated water: Dissolved oxygen supports protective oxide formation
Avoid ammonia, high sulfides, and acidic conditions (pH < 6.5) for standard brasses. Inhibited admiralty brass tolerates broader conditions.
How does fouling affect brass heat exchanger performance compared to other materials?
Brass offers natural biofouling resistance from copper content, reducing biological growth compared to steel or aluminum. The smooth surface finish achievable with drawn brass tubes minimizes particulate adhesion. However, mineral scaling occurs similarly to other materials and requires water treatment or periodic cleaning. Overall, brass typically maintains performance longer between cleanings than many alternative materials.
What manufacturing methods produce the best brass heat exchanger tubes?
Seamless extrusion followed by cold drawing produces the highest quality heat exchanger tubes. This process:
- Eliminates weld seams that could corrode or leak
- Achieves precise dimensional tolerances
- Creates smooth surface finishes reducing fouling
- Provides uniform mechanical properties
ASTM B111 (copper and copper-alloy seamless condenser tubes) and similar standards define quality requirements for heat exchanger tubing.
How do I calculate the heat transfer improvement from using brass instead of stainless steel?
Heat transfer improvement depends on the controlling resistance. When tube wall conduction limits performance (thin walls, high convection coefficients), the improvement approximates the conductivity ratio:
Improvement ≈ k_brass / k_steel ≈ 125/20 ≈ 6x
When convection controls (typical practical cases), the improvement is less dramatic but still significant. For equal designs, brass heat exchangers typically achieve 20-50% higher U-values than stainless steel equivalents, enabling smaller size or improved performance.
Can damaged brass heat exchanger tubes be repaired?
Individual tube replacement is the standard repair method for leaking tubes. Techniques include:
- Tube pulling: Remove damaged tube, install replacement
- Tube plugging: Permanently seal damaged tubes (reduces capacity)
- In-place annealing: For stress relief in limited areas
Design heat exchangers with tube sheet layouts permitting individual tube replacement. Major damage may require retubing entire units.
What is the maximum operating temperature for brass heat exchangers?
Brass heat exchangers typically operate below 200°C (392°F). Maximum continuous service temperatures by alloy:
- Standard brasses (C26000, C27000): 150-175°C
- Admiralty brass (C44300): 175-200°C
- Aluminum brass (C68700): 150-175°C
Above these temperatures, strength decreases and corrosion rates increase. For higher temperatures, consider cupronickel alloys or alternative materials.
How does zinc content affect brass thermal conductivity?
Increasing zinc content generally decreases thermal conductivity. Pure copper (0% zinc): 398 W/m·K. Cartridge brass (30% zinc): ~123 W/m·K. Muntz metal (40% zinc): ~125 W/m·K (slight increase due to specific phase structure). Additional alloying elements (tin, aluminum) further reduce conductivity. The relationship is not strictly linear due to metallurgical phase changes across the copper-zinc system.
What brazing materials work best for brass heat exchanger assembly?
Silver-based brazing alloys (BAg-1, BAg-1a, BAg-5 per AWS A5.8) provide excellent results:
- BAg-1 (44%Ag-30%Cu-26%Zn): General purpose, good flow
- BAg-5 (45%Ag-30%Cu-25%Zn): Higher temperature capability
- BAg-7 (56%Ag-22%Cu-17%Zn-5%Sn): Lower temperature, good for thin sections
Proper flux selection, joint design, and temperature control ensure strong, corrosion-resistant joints.
Are there environmental concerns with brass heat exchangers?
Brass contains copper and zinc, with some alloys containing arsenic (admiralty brass), tin, or aluminum. Considerations include:
- Recyclability: Brass is highly recyclable at end of life
- Copper release: Minimal in properly operating systems; monitoring required in sensitive environments
- Arsenic: Only in specific alloys; handled during manufacturing
Brass heat exchangers generally present favorable environmental profiles compared to alternatives, with long service lives and full recyclability.
References
[^1^]: Thermal Conductivity of Metals. ASM Handbook, Volume 1: Properties and Selection: Irons, Steels, and High-Performance Alloys.
[^2^]: Brass Alloys for Heat Exchanger Applications. Copper Development Association.
[^3^]: Marine Corrosion of Copper Alloys. National Association of Corrosion Engineers (NACE).
[^4^]: Heat Exchanger Design Handbook. Begell House Publishers.
[^5^]: Heat Transfer Engineering: Design and Applications. CRC Press, 2024.
