What is Martensitic Steel? Strength, Structure, and Applications

Introduction: The Power of Martensitic Steel

When engineers need exceptional strength without excessive weight, martensitic steel often becomes their material of choice. This specialized class of steel delivers tensile strengths ranging from 900 MPa to over 1,700 MPa—making it one of the strongest commercially available steel varieties while maintaining practical manufacturability.

Unlike conventional carbon steels or austenitic stainless grades, martensitic steel achieves its remarkable properties through a unique crystal structure and heat treatment process that transforms soft, workable material into incredibly hard, strong components. This transformation, discovered by German metallurgist Adolf Martens in the 1890s, enables applications where strength-to-weight ratio is critical.

From electric vehicle battery enclosures to surgical instruments, martensitic steel has become indispensable across industries. This guide explores the metallurgical foundations, mechanical properties, and practical applications of martensitic steel to help engineers and procurement specialists make informed material selection decisions.

What Makes Martensitic Steel Different

The Body-Centered Tetragonal (BCT) Crystal Structure

The defining characteristic of martensitic steel is its body-centered tetragonal (BCT) crystal structure—a unique atomic arrangement that distinguishes it from other steel classes.

Crystal Structure Comparison:

Steel Type	Crystal Structure	Key Properties
Ferritic	Body-Centered Cubic (BCC)	Soft, magnetic, moderate strength
Austenitic	Face-Centered Cubic (FCC)	Non-magnetic, excellent corrosion resistance, not heat-treatable
Martensitic	Body-Centered Tetragonal (BCT)	Very hard, very strong, magnetic, heat-treatable

In the BCT structure, iron atoms arrange in a distorted cubic pattern where one axis is elongated while the other two are compressed. This distortion occurs when carbon atoms become trapped in the iron lattice during rapid cooling (quenching), preventing them from escaping as they would during slower cooling.

The trapped carbon creates intense internal strain within the crystal lattice. This strain impedes the movement of dislocations—defects in the crystal structure that allow metals to deform plastically. By restricting dislocation movement, the BCT structure gives martensitic steel its characteristic hardness and strength.

How Martensite Forms: The Quenching Process

Martensitic steel begins as austenite—a high-temperature phase with a face-centered cubic structure where carbon atoms are dissolved in the iron matrix. The transformation to martensite occurs when this austenite is cooled rapidly enough to suppress the formation of softer phases like ferrite, pearlite, or bainite.

The Quenching Process:

1. Heating (Austenitizing): Steel is heated to 815-900°C (depending on carbon content) to form homogeneous austenite
2. Rapid Cooling (Quenching): The hot steel is rapidly cooled in water, oil, or polymer solutions
3. Martensitic Transformation: The rapid cooling prevents carbon diffusion, locking atoms into the BCT structure
4. Result: Hard, strong martensite with needle-like or plate-like microstructure visible under microscopy

The speed of cooling is critical. If cooling is too slow, carbon atoms have time to migrate and form softer phases. The quenching medium—water (fastest), oil, or polymer solutions (slower)—is selected based on the steel composition and required properties.

Chemical Composition

Martensitic steels typically contain:

• Carbon: 0.1% to 1.2% (primary hardening element)
• Chromium: 11% to 18% (in martensitic stainless grades, provides corrosion resistance)
• Other alloying elements: Molybdenum, vanadium, nickel (for specific property enhancements)

The carbon content directly determines maximum achievable hardness:

• Low carbon (0.1-0.3%): Moderate hardness, better toughness and weldability
• Medium carbon (0.3-0.6%): Good balance of hardness and toughness
• High carbon (0.6-1.2%): Maximum hardness and wear resistance, more brittle

Mechanical Properties and Strength Grades

Understanding Martensitic Steel Strength Levels

Martensitic steel is available in standardized strength grades that indicate minimum tensile strength in megapascals (MPa):

Grade	Min. Tensile Strength	Typical Applications
900M	900 MPa (130 ksi)	Structural components, general engineering
1100M	1,100 MPa (160 ksi)	Automotive structural parts, machinery
1300M	1,300 MPa (189 ksi)	High-stress components, performance parts
1500M	1,500 MPa (218 ksi)	Safety-critical automotive, aerospace
1700M	1,700 MPa (247 ksi)	Armor, ultra-high-strength applications

To put these numbers in perspective:

• Mild steel: ~250-400 MPa
• Standard structural steel: ~400-550 MPa
• Martensitic steel: 900-1,700+ MPa

This exceptional strength enables significant weight reduction. A component made from 1,700 MPa martensitic steel can be approximately one-third the thickness of an equivalent mild steel component while carrying the same load.

Hardness Characteristics

Martensitic steel achieves hardness levels exceeding 60 HRC (Rockwell C scale) in high-carbon grades immediately after quenching. However, this extreme hardness comes with reduced toughness—the material becomes brittle and prone to cracking under impact.

The Tempering Solution:

To address brittleness, martensitic steel undergoes tempering—a controlled reheating process:

• Temperature range: 200°C to 700°C
• Effect: Reduces hardness slightly while significantly improving toughness
• Outcome: Balanced properties suitable for structural applications

Higher tempering temperatures produce softer, tougher material; lower temperatures retain more hardness. The specific tempering temperature is selected based on application requirements.

Comparison with Other Stainless Steel Types

Property	Martensitic	Austenitic (304)	Ferritic (430)
Strength	Very High (900-1700 MPa)	Moderate (515 MPa)	Moderate (450 MPa)
Hardness	Very Hard (up to 60 HRC)	Soft (annealed)	Moderate
Corrosion Resistance	Moderate	Excellent	Good
Heat Treatable	Yes	No	Limited
Magnetic	Yes	No	Yes
Weldability	Difficult	Excellent	Good
Typical Cost	Higher	Moderate	Lower

Key Takeaway: Martensitic steel is chosen when strength and hardness are the primary requirements, with corrosion resistance being secondary. For applications requiring both high strength and excellent corrosion resistance, precipitation-hardening (PH) stainless steels may be preferred despite higher costs.

Common Martensitic Steel Grades

Standard Martensitic Stainless Grades

Type 410 (UNS S41000)

• Composition: 11.5-13.5% Cr, ≤0.15% C
• Properties: Good corrosion resistance, moderate strength, excellent machinability
• Applications: Cutlery, steam and gas turbine blades, pumps, valves
• Notes: The basic martensitic stainless grade; widely available and economical

Type 420 (UNS S42000)

• Composition: 12-14% Cr, ≥0.15% C
• Properties: Higher carbon content than 410; greater hardness and wear resistance
• Applications: Surgical instruments, cutlery, molds, dies
• Notes: Better hardenability than 410; can achieve higher hardness

Type 440C (UNS S44004)

• Composition: 16-18% Cr, 0.95-1.20% C
• Properties: Maximum hardness among stainless grades; excellent wear resistance
• Applications: Ball bearings, valve seats, cutlery, surgical tools
• Notes: Premium grade for demanding wear applications

European/AISI Designations

1.4057 (AISI 431, UNS S43100)

• Composition: 15-17% Cr, 1.25-2.50% Ni, 0.12-0.22% C
• Properties: Nickel addition improves toughness; good for marine environments
• Applications: Marine hardware, aircraft fittings, pump shafts
• Notes: Often specified as QT800 (Quenched and Tempered to 800 MPa)

1.4418

• Composition: Low carbon martensitic with good weldability
• Properties: High strength with improved corrosion resistance
• Applications: Hydroelectric turbines, propeller shafts, pump components

Automotive Grades (SSAB Docol Series)

Docol 900M

• Properties: 900 MPa minimum tensile strength
• Applications: Door beams, bumper systems, structural reinforcements

Docol 1100M

• Properties: 1,100 MPa minimum tensile strength
• Applications: Sill reinforcements, roof reinforcements

Docol 1300M

• Properties: 1,300 MPa minimum tensile strength
• Applications: B-pillars, side impact protection

Docol 1500M

• Properties: 1,500 MPa minimum tensile strength
• Applications: Ultra-high-strength safety cage components

Docol 1700M

• Properties: 1,700 MPa minimum tensile strength
• Applications: Maximum intrusion protection, battery enclosure protection (EVs)

Industrial Applications

Automotive Industry

The automotive sector is the largest consumer of martensitic steel, driven by crash safety requirements and lightweighting initiatives.

Key Applications:

• Door Beams: Side-impact protection bars that prevent intrusion during collisions
• Bumper Systems: Front and rear bumpers that absorb impact energy
• Sill Reinforcements: Rocker panel structures protecting against side impacts
• B-Pillars: Center roof supports critical for rollover protection
• Cross Members: Structural elements transferring crash loads

EV Battery Enclosures:

Electric vehicles require robust battery protection. Martensitic steel grades like Docol 1700M provide:

• Exceptional intrusion resistance for battery packs
• Thin-gauge capability for weight savings (critical for range)
• Formability despite high strength for complex geometries

The strength-to-weight advantage is crucial for EVs—every kilogram saved in structure allows either increased battery capacity or extended range.

Aerospace Applications

Aerospace uses martensitic steels selectively where high strength is essential:

• Landing Gear Components: High-stress structural elements
• Control Surface Hinges: Pivot points requiring wear resistance
• Fasteners: High-strength bolts and pins
• Engine Mounts: Structural attachments managing vibration and load

The balance of strength, moderate corrosion resistance, and heat treatability makes martensitic grades suitable for many aerospace structural applications.

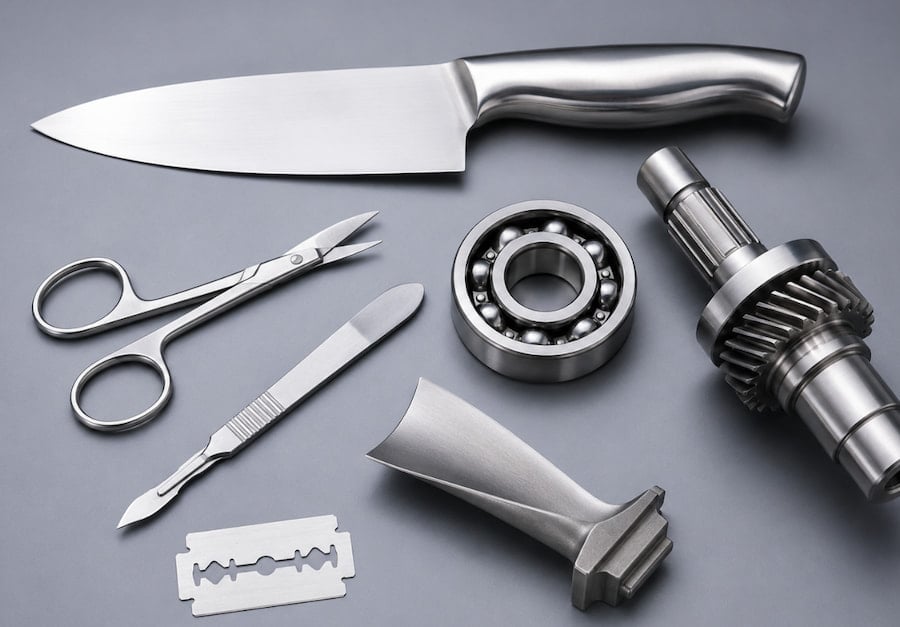

Cutlery and Surgical Instruments

The ability to achieve high hardness and maintain a sharp edge makes martensitic stainless ideal for:

• Kitchen Knives: High-carbon grades (420, 440C) hold edges well
• Surgical Instruments: Sterilizable, corrosion-resistant, precise edges
• Razor Blades: Ultra-thin, extremely hard edges
• Industrial Blades: Cutting tools for manufacturing

For these applications, corrosion resistance must be balanced with hardness—higher carbon content increases hardness but can reduce corrosion resistance if not properly heat treated.

Marine and Oil & Gas

Marine applications benefit from grades like 1.4057 (431) that combine:

• Moderate corrosion resistance from chromium content
• High strength for mechanical loads
• Reasonable toughness for impact resistance

Typical uses include:

• Pump shafts
• Valve components
• Propeller shafts
• Offshore platform hardware

Manufacturing Considerations

Heat Treatment Requirements

Martensitic steel's properties are entirely dependent on proper heat treatment:

Basic Heat Treatment Cycle:

1. Austenitize: Heat to 815-900°C (depending on grade)
2. Quench: Rapid cooling in appropriate medium
3. Temper: Reheat to 200-700°C based on desired properties
4. Cool: Air cool to room temperature

Improper heat treatment results in:

• Insufficient hardness (inadequate quench)
• Excessive brittleness (insufficient tempering)
• Dimensional distortion (uneven cooling)
• Cracking (thermal shock from too-rapid quenching)

Machinability

Martensitic steel in the annealed (soft) condition machines reasonably well. However:

• High hardness grades (440C, heat-treated) are difficult to machine
• Carbide tooling is often required for hardened material
• Grinding is frequently used for finishing hardened components
• Annealed condition is preferred for extensive machining operations

Welding Challenges

Welding martensitic steel is challenging due to:

• Hardening in heat-affected zone (HAZ): Creates brittle areas prone to cracking
• Hydrogen embrittlement: Moisture in welding environment can cause delayed cracking
• Preheat requirements: Often 200-400°C depending on carbon content
• Post-weld heat treatment: Usually required to restore toughness

Welding Guidelines:

• Use low-hydrogen electrodes or processes
• Preheat to reduce cooling rate in HAZ
• Maintain interpass temperatures
• Post-weld temper to reduce hardness and restore toughness
• Consider alternative joining methods (bolting, adhesive bonding) for high-carbon grades

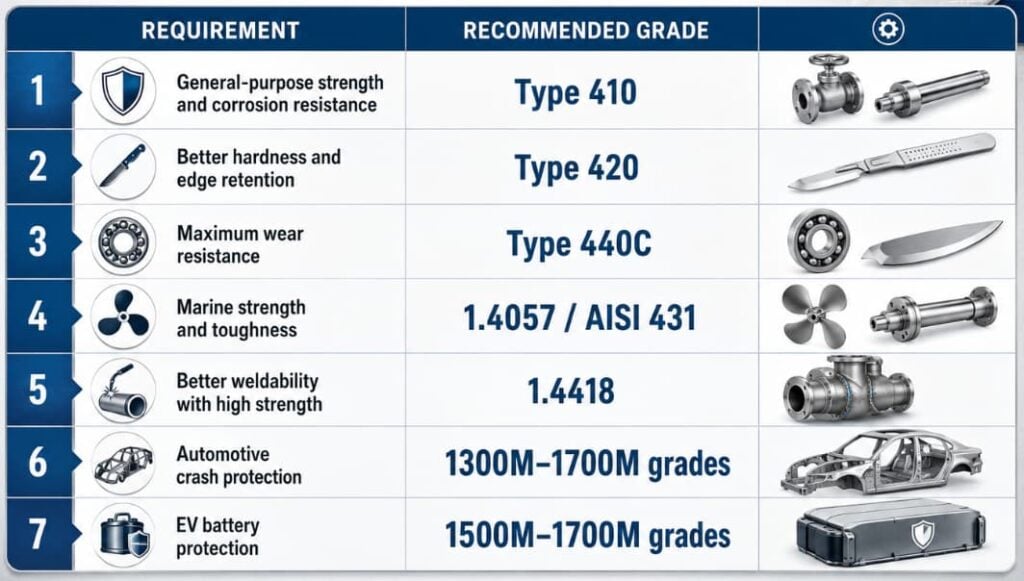

Selecting Martensitic Steel for Your Application

When to Choose Martensitic Steel

Choose martensitic steel when:

• High strength (900+ MPa) is required
• Wear resistance is important
• Heat treatment capability is needed for customization
• Magnetic properties are acceptable or desired
• Moderate corrosion resistance is sufficient
• Weight reduction through thinner sections is beneficial

Consider alternatives when:

• Excellent corrosion resistance is primary requirement (use austenitic)
• Cost is the primary driver (use carbon steel)
• Welding is extensive and post-weld heat treatment impractical
• Non-magnetic properties are required (use austenitic)

Decision Framework

1. Define strength requirements: What load must the component carry?
2. Assess corrosion exposure: What environment will the part operate in?
3. Evaluate manufacturing methods: Will welding be required? Heat treatment available?
4. Consider life-cycle requirements: Wear resistance needed? Maintenance access?
5. Balance cost constraints: Is the performance premium justified?

Conclusion

Martensitic steel represents a unique position in the materials spectrum—delivering exceptional strength and hardness while maintaining the practical benefits of steel: formability, weldability (with precautions), heat treatability, and relative economy compared to exotic alloys.

The body-centered tetragonal crystal structure created through quenching provides strength levels unattainable through other steel processing methods. Combined with chromium additions for corrosion resistance in stainless grades, martensitic steel enables applications from everyday cutlery to critical automotive safety components.

Understanding the relationship between composition, heat treatment, and final properties allows engineers to select the optimal grade for specific applications. Whether the priority is maximum strength (1700M grades), balanced properties (900-1300M), or corrosion resistance with moderate strength (400-series stainless), martensitic steel offers solutions for demanding engineering challenges.

As automotive lightweighting and electric vehicle protection requirements drive demand for ultra-high-strength materials, martensitic steel's importance will only grow. The material's proven performance, established supply chains, and ongoing grade development ensure it remains a cornerstone of advanced manufacturing.
