Matching Historic Brass Hardware: CNC Machining for Authentic Reproductions

What is CNC Machining?

CNC machining (Computer Numerical Control machining) is a precision manufacturing process where computer-controlled machines remove material from solid metal or plastic to create highly accurate parts based on digital designs. By following programmed toolpaths, CNC machines can replicate complex geometries, tight tolerances, and fine details with consistent repeatability. This makes CNC machining especially valuable for applications such as historic hardware reproduction, where matching the original dimensions, fit, and functionality is critical.

Introduction: When Authenticity Matters

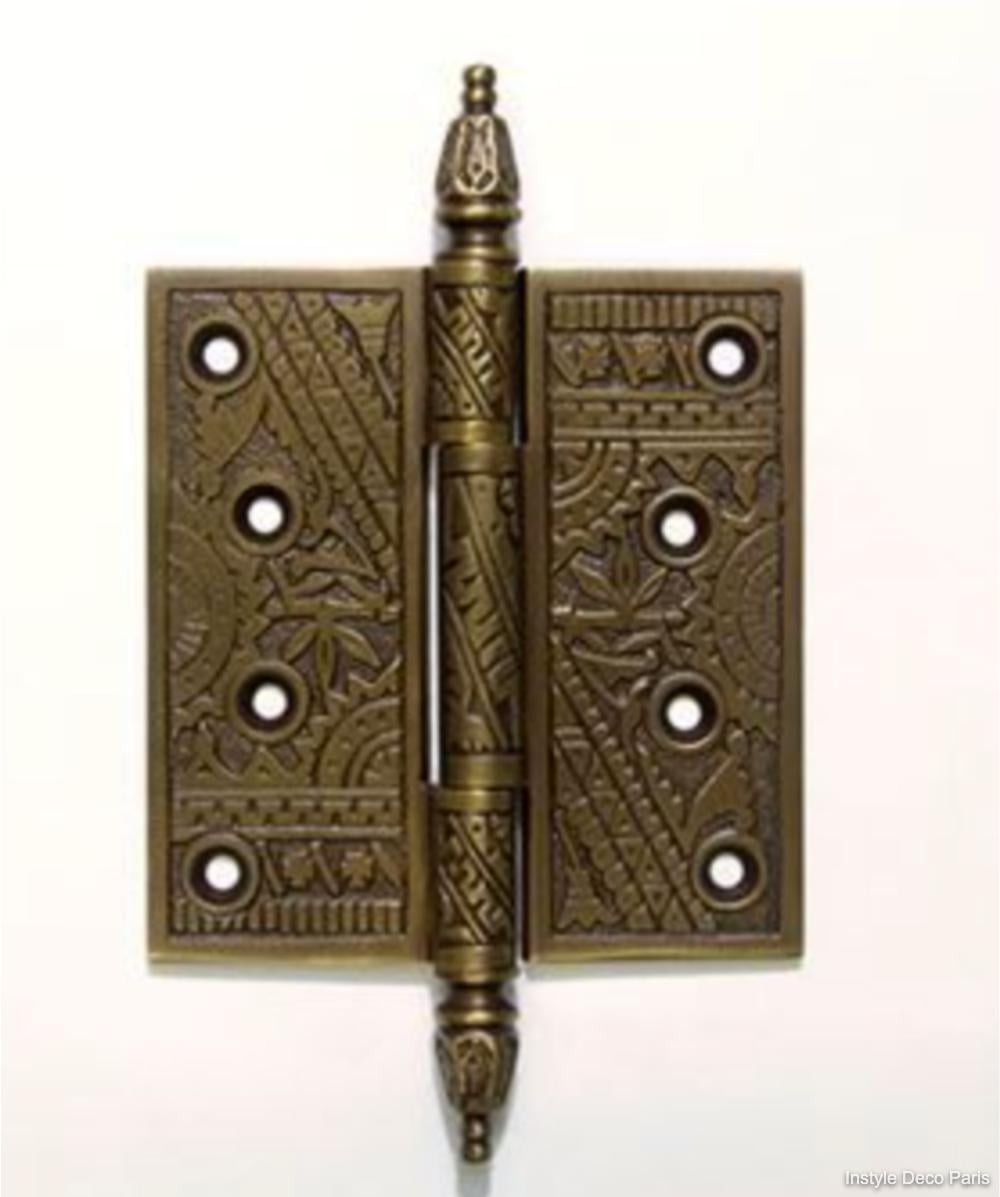

Historic brass hardware, ranging from ornate door handles on Victorian mansions to the simple yet elegant hinges of colonial homes, represents craftsmanship that modern mass production often fails to replicate. For restoration projects, heritage building maintenance, and authentic reproduction manufacturing, the challenge isn’t just creating something that looks similar; it’s achieving dimensional accuracy, material authenticity, and functional equivalence that satisfies preservation standards.

CNC machining has revolutionized historic hardware reproduction, enabling craftspeople and manufacturers to create pieces indistinguishable from originals while meeting modern performance requirements. This guide explores the intersection of historical accuracy and precision manufacturing.

The Heritage Hardware Market

Applications for Historic Reproductions

Application Sector	Typical Components	Standards Requirements
Museum Restoration	Display cases, exhibit hardware	AAM guidelines, reversibility
Historic Homes	Door/window hardware, hinges	Secretary of Interior Standards
Government Buildings	Legislative chambers, courts	GSA guidelines, Buy American
Religious Buildings	Altar hardware, sanctuary fittings	Denominational preservation rules
Theater/Film	Set dressing, functional props	Authenticity for period accuracy
Luxury Residential	Custom homes seeking period style	Client aesthetic requirements
Educational Institutions	Campus heritage buildings	State preservation office standards

Preservation Standards Overview

Secretary of Interior’s Standards for Rehabilitation

• Standard 2: Preserve historic character
• Standard 6: Repair rather than replace
• Standard 9: Distinguish new work from old (when replacement necessary)

National Park Service Guidelines

• Document existing conditions thoroughly
• Use physical and photographic analysis
• Match materials, design, and finish historically
• Minimum intervention approach

Analyzing Historic Hardware

Documentation and Measurement

Step 1: Photographic Documentation

• High-resolution images from multiple angles
• Macro photography of surface details and patina
• Scale reference in each image
• UV photography to reveal hidden markings

Step 2: Dimensional Analysis

Measurement Tool	Precision	Application

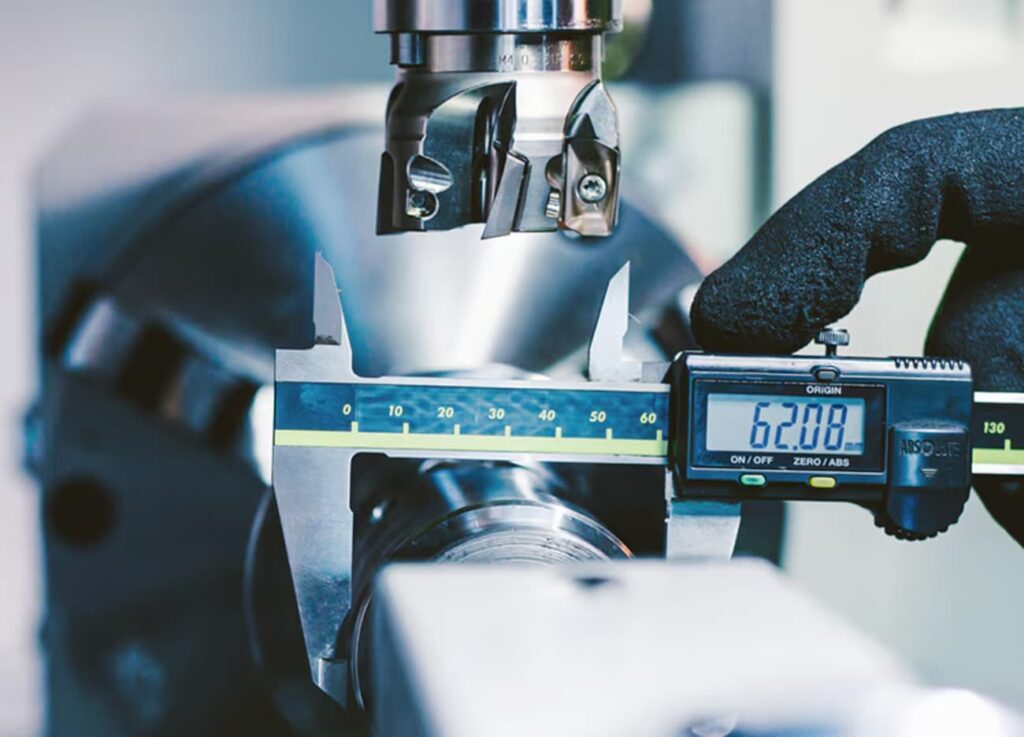

Digital Calipers	±0.001″	General dimensions, thickness
Micrometers	±0.0001″	Precision features, shaft diameters
Height Gauges	±0.001″	Vertical features, step heights
Optical Comparators	±0.0005″	Complex profiles, contours
3D Laser Scanners	±0.002″	Overall form, organic shapes
CT Scanning	±0.001″	Internal features, hidden geometry

Step 3: Material Analysis

Non-Destructive Testing (Preferred)

• XRF (X-Ray Fluorescence): Identifies alloy composition
• Hardness Testing: Confirms temper and alloy type
• Ultrasonic Testing: Detects internal cracks or voids

Destructive Testing (When Sacrifice Acceptable)

• Spectrographic Analysis: Precise elemental composition
• Metallographic Examination: Grain structure, porosity
• Tensile Testing: Mechanical properties

Common Historic Brass Alloys

Era	Typical Alloy	Characteristics	Modern Equivalent
Colonial (1600-1776)	C23000 (85/15)	Reddish color, soft, formable	C23000, C83600
Federal (1776-1830)	C26000 (70/30)	Yellow color, harder	C26000
Victorian (1837-1901)	C28000 (60/40)	Golden color, cast decorative	C28000, C83600
Arts & Crafts (1880-1920)	C27000 (65/35)	Warm color, hand-forged look	C27000
Art Deco (1920-1940)	C36000 (machined)	Bright finish, geometric forms	C36000
Mid-Century (1945-1960)	Various	Often plated, modern alloys	Match original XRF

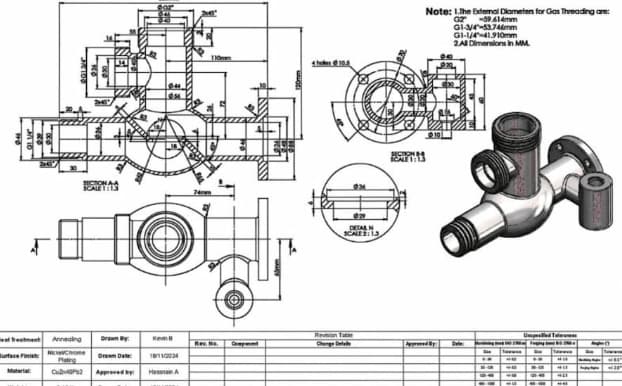

CAD Modeling for Historic Hardware

Capturing Organic Forms

Historic hardware often features hand-finished details that don’t translate directly to CAD:

Challenges

• Irregular surfaces from sand casting
• Tool marks from hand finishing
• Worn surfaces from use
• Intentional asymmetry in hand-crafted pieces

Solutions

Approach	Method	Best For
NURBS Surfacing	Control point manipulation	Flowing, organic shapes
Sub-D Modeling	Subdivision surfaces	Sculptural, free-form details
Reverse Engineering	Scan-to-CAD	Exact reproduction of complex forms
Parametric Features	Constraint-based modeling	Geometric, machined components
Hybrid Approach	Combine methods	Complex assemblies

Tolerancing for Function

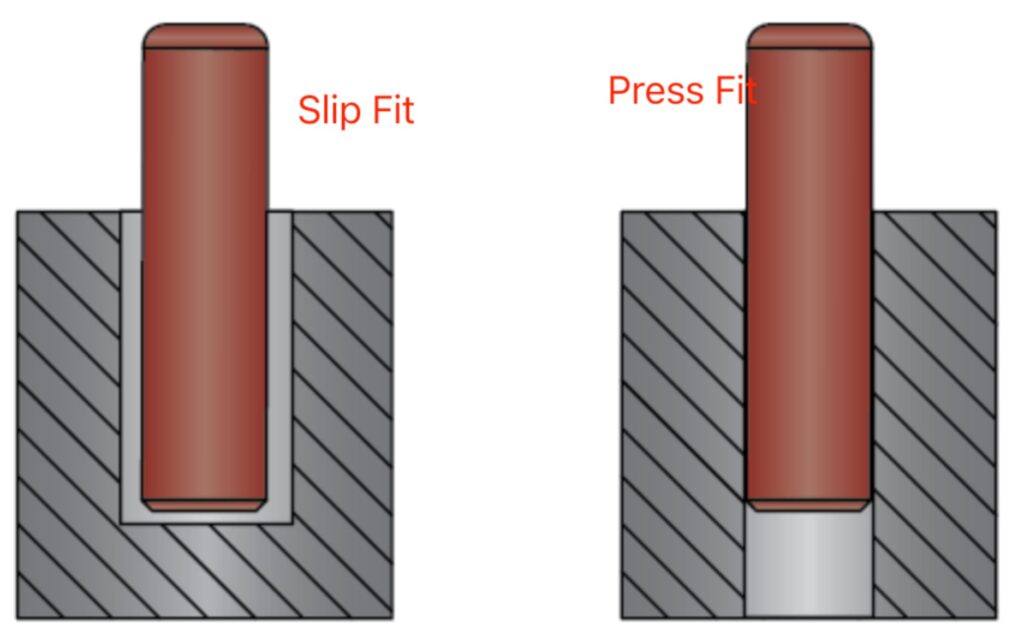

Fit Considerations

Interface Type	Recommended Tolerance	Notes
Pivot/Pin Clearance	+0.002″ to +0.005″	Allows smooth operation
Sliding Fit	+0.001″ to +0.003″	Smooth, controlled motion
Press Fit	-0.001″ to -0.003″	Permanent assembly
Thread Engagement	Class 2B (standard)	General hardware
Thread Engagement	Class 3B (precision)	Fine adjustment hardware
Backplate Seating	±0.005″	Cosmetic only

Accounting for Patina Buildup Original hardware may have operated with significant patina accumulation. Reproductions should:

• Provide slight additional clearance at wear points
• Specify break-in period in documentation
• Use compatible lubricants (not modern synthetics that alter patina)

CNC Machining Strategies

Workholding Considerations

Historic hardware often features:

• Thin, delicate sections
• Complex external geometry
• Critical surface finishes
• No flat reference surfaces

Specialized Fixturing

Component Type	Fixturing Approach
Ornate Backplates	Vacuum chuck with custom gasket
Curved Handles	Soft-jaw vise with matching contour
Delicate Spindles	Collet chuck with minimal clamping
Asymmetric Forms	5-axis positioning with tailstock support
Thin Sections	Wax mounting or freeze-fit tooling

Toolpath Strategies

Roughing

• High-efficiency milling (HEM) for material removal
• Leave 0.010-0.020″ stock for finishing
• Avoid heat buildup that affects temper

Semi-Finishing

• Ball mill passes to prepare for final form
• Maintain consistent stepover for surface quality
• 0.005″ stock remaining

Finishing

Feature Type	Tool	Strategy
Flat Surfaces	Face mill or end mill	Climb milling, fine stepover
Contours	Ball end mill	Constant scallop height
Sharp Corners	Corner radius or pencil mill	Multiple passes
Fine Details	Tapered ball mill	High-speed machining
Text/Engraving	Engraving cutter or V-bit	Single pass at full depth

Surface Finish Considerations

Achieving Period-Appropriate Finishes

Era/Style	Target Finish	CNC Approach	Post-Process
Early Hand-Forged	Hammer marks, irregular	Intentional toolpath variation	Hand distressing
Victorian Cast	As-cast texture	Rough pass only, no finish cut	Chemical patina
Industrial Era	Machined but not polished	Standard finishing passes	Brushed finish
Art Deco	High polish, geometric	Fine finishing, minimal scallops	Polishing, lacquer
Arts & Crafts	Hand-rubbed appearance	Directional tool marks preserved	Oil finish

Tool Marks as Features Some reproductions benefit from visible tool marks that suggest hand crafting:

• Program intentional scallop patterns
• Use larger stepovers in visible areas
• Preserve witness marks from setups

Material Selection for Authenticity

Color Matching

Brass color varies by alloy and finish. Spectrophotometer analysis of originals:

Alloy	L* (Lightness)	a* (Red-Green)	b* (Yellow-Blue)
C23000	68-72	+8 to +12	+28 to +32
C26000	70-74	+6 to +10	+32 to +36
C27000	72-76	+4 to +8	+34 to +38
C28000	74-78	+2 to +6	+36 to +40

Target reproduction finish should match original Lab values within ±2 units

Mechanical Properties

Matching Strength and Work Hardening

Historic hardware may have work-hardened areas from forming:

Temper	Tensile Strength	Hardness	Application
Annealed (O)	40,000 PSI	55 HRB	Deep forming, soft details
Quarter Hard (H01)	50,000 PSI	65 HRB	Moderate forming
Half Hard (H02)	60,000 PSI	75 HRB	Springs, latches
Hard (H04)	70,000 PSI	85 HRB	Rigid components
Extra Hard (H08)	80,000 PSI	95 HRB	Maximum strength

Historical Accuracy vs. Modern Requirements

Lead Content Considerations

• Pre-2014 hardware: May contain 4-8% lead
• Modern reproductions: Must comply with NSF/ANSI 372 (<0.25% lead)
• Solution: Use silicon brass (C69300) or bismuth brass for machinability

Surface Coatings

• Original: May have mercury gilding, lacquer, or natural patina
• Modern: Lacquer, wax, or controlled patina
• Match appearance while ensuring durability

Finishing and Patination

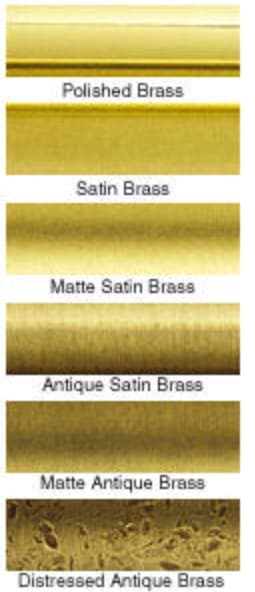

Mechanical Finishes

Finish Type	Process	Appearance
Brushed	220-400 grit directional sanding	Subtle lines, matte
Satin	Non-woven abrasive, random orbit	Soft sheen, no direction
Bright	Polishing to mirror	High reflectivity
Antique	Selective darkening, highlight removal	Aged appearance
Oil-Rubbed	Dark base with bronze highlights	Deep, rich tones

Chemical Patination

Traditional Formulas (Use with Safety Precautions)

Patina Type	Formula	Application
Brown/Antique	Ferric nitrate solution	Even application, neutralize
Green/Verdigris	Ammonium chloride + copper sulfate	Controlled exposure
Black	Liver of sulfur (potassium sulfide)	Dip or brush, seal immediately
Red/Orange	Heat + salt solution	Torch coloring

Modern Equivalents

• Commercial patina solutions (JAX, Birchwood-Casey)
• More consistent, safer handling
• Better documentation for reproducibility

Protective Coatings

Coating	Durability	Reversibility	Best For
Microcrystalline Wax	Moderate	Excellent	Museum pieces, low-use
Incralac	Good	Good	Exterior, moderate exposure
Clear Powder Coat	Excellent	Poor	High-traffic, functional
Lacquer	Fair	Fair	Interior, decorative
None (Living Finish)	N/A	N/A	High-use, intentional aging

Quality Control for Reproductions

Dimensional Verification

First Article Inspection

• CMM measurement of all critical dimensions
• Surface finish measurement (Ra, Rz)
• Comparison to original artifact or CAD model
• Documentation package for client approval

Statistical Process Control

• Key characteristics monitored in production
• Control charts for critical dimensions
• Go/no-go gauges for rapid inspection

Functional Testing

Test	Method	Acceptance Criteria
Cycle Testing	Automated open/lose cycles	50,000 cycles minimum
Load Testing	Static load application	3× working load
Salt Spray	ASTM B117	Per specification
Hardness	Rockwell or Brinell	Within alloy specification
Color Match	Spectrophotometer	ΔE <2.0 from standard

Documentation Package

Comprehensive reproduction records should include:

• Photographs of original artifact
• Dimensional measurement report
• Material certification
• Finishing process documentation
• Patina formulation
• Care and maintenance instructions
• Certificate of authenticity

Southeast Asia Heritage Projects

Regional Architectural Heritage

Thailand

• Traditional Thai architecture: Ornate gilded hardware
• Colonial influence: Sino-Portuguese mixed styles
• Royal projects: Strict authenticity requirements

Colonial Southeast Asia

• Dutch, British, French architectural hardware
• Mixed cultural influences
• Tropical climate considerations

Sourcing Considerations

Local Material Availability

• Brass rod and bar readily available in Bangkok industrial areas
• Lead-free alloys increasingly available
• Specialty alloys may require import

Export Considerations

• CITES documentation if hardware contains ivory or other restricted materials
• Cultural property clearance for certain antiquities
• Country of origin marking requirements

Conclusion

Reproducing historic brass hardware requires more than visual similarity—it demands precision, material authenticity, and a deep understanding of both traditional craftsmanship and modern manufacturing techniques. CNC machining bridges this gap by enabling accurate replication of complex geometries, controlled tolerances, and consistent surface finishes while maintaining the functional integrity of the original components.

From detailed measurement and material analysis to advanced CAD modeling and finishing processes, each step plays a critical role in achieving results that meet both preservation standards and modern performance requirements. When executed correctly, CNC machining allows manufacturers to deliver components that are visually and functionally aligned with historic originals.

At Align Manufacturing, we specialize in precision-driven reproduction projects, combining engineering expertise with disciplined process control to ensure consistent, high-quality outcomes. With growing capabilities for machining in Vietnam, we are able to support both low-volume custom work and scalable production, offering our partners a reliable solution for complex and detail-sensitive components.

Ultimately, successful historic hardware reproduction is not just about making parts—it’s about preserving craftsmanship, ensuring performance, and delivering long-term value through the right manufacturing strategy.

FAQ

Q1: How accurate should reproduction brass hardware be to the original?

A: Accuracy requirements depend on application:

• Museum display: Exact to 0.001″ where visible
• Functional restoration: Within tolerance for operation
• General reproduction: Visually indistinguishable at 3 feet
• Inspired-by pieces: Captures character, not exact copy

Always document deviations from original when they occur.

Q2: Can we improve the original design of brass hardware while maintaining authenticity?

A: Under Secretary of Interior Standards, improvements must be:

• Reversible without damage to historic fabric
• Distinguishable from original work
• Documented thoroughly
• Approved by appropriate authorities

Common acceptable improvements: Hidden bearings, modern lubricants, stainless steel pins in brass housings.

Q3: What’s the minimum order quantity for custom brass reproduction hardware?

A: CNC machining enables economical small quantities:

• Prototype/single piece: ₫12,250,000–₫49,000,000+ ($500–$2,000+) (high setup cost)
• Small batch (10–50): ₫1,225,000–₫4,900,000 per piece ($50–$200 per piece)
• Medium batch (50–200): ₫735,000–₫2,450,000 per piece ($30–$100 per piece)
• Full production (200+): ₫367,500–₫1,225,000 per piece ($15–$50 per piece)

Costs highly dependent on complexity and finishing requirements.

Q4: How do we handle brass hardware with maker’s marks or logos?

A: Several approaches:

1. Exact reproduction: Requires permission from trademark holder
2. Generic replacement: Omit marks, reproduce form only
3. Documentation: Photograph and preserve original marks separately
4. Period-appropriate mark: Use shop mark in period style

When in doubt, consult with a preservation officer or legal counsel.

Q5: Can worn original brass hardware be restored instead of replaced?

A: Restoration is always preferred over replacement when feasible:

• Metal consolidation for deteriorated castings
• Weld repair of cracks or breaks
• Replating worn surfaces
• Replication of missing components only

Restoration requires specialized conservators; CNC machining typically for replacement when restoration is not viable.

Q6: What file formats are needed for CNC machining historic brass hardware?

A: Preferred formats:

• STEP (.stp): Universal CAD exchange
• IGES (.igs): Surface data, older systems
• STL: For 3D printing patterns for casting
• Native CAD: SolidWorks, Fusion 360, etc.

Include:

• 3D solid model
• 2D drawings with tolerances
• Surface finish specifications
• Material callouts

Q7: How do we match the weight/heft of original brass hardware?

A: Weight is a critical authenticity factor:

• Use correct alloy density (brass: 0.308 lb/cu in)
• Match wall thickness exactly
• Account for any hollow sections
• Specify weight tolerance (typically ±5%)

If the original has lead weights (common in sash hardware), replicate with hidden steel or brass to avoid lead content issues.

Q8: What’s the lead time for custom reproduction brass hardware?

A: Typical timeline:

• Documentation/measurement: 1-2 weeks
• CAD modeling: 1-3 weeks
• First article production: 2-4 weeks
• Client approval/revisions: 1-2 weeks
• Production: 2-6 weeks (quantity dependent)
• Finishing/patination: 1-2 weeks

Total: 8-16 weeks typical

Rush service available at premium (30-50% upcharge) for urgent restoration projects.
